Struct channel roll forming machine

Struct C type channel profile metal framing roll forming machine
No	Item	Unit	Qty
1.1	Hydraulic de-coiler	No	1
1.2	Straightener	No	1
1.3	Servo feeder	No	1
2.2	Press machine +Punching die	No	1
3	C 41*41 roll forming machine Product speed 30-50M per min	No	1
4	Cutting unit, speed is 15-30M per min	No	1
6	Hydraulic system	No	1
7	Electric control system	No	1
8	Packing table	No	1

Send email to us

Product Detail

Product Tags

Product Description

Profile Material	A) Galvanized strip	Thickness(MM): 1.5-2.5mm
	B) Black strip
	C) Carbon strip
Yield strength	250 - 550 Mpa
Tensil stress	G250 Mpa-G550 Mpa
parts of production line	Optional choice
Forming station	20-35 steps (up to customers' drawing)
Main machine motor brand	TECO/ABB/Siemens	SEW
Driving system	Gearbox drive	* Gearbox drive
Forming speed	10-15m/min	20-35m/min
Rollers’ material	CR12MOV(dongbei steel)	Cr12mov(dongbei steel)
Frequency changer brand	YASKAWA	SEW
PLC brand	Mitsubishi	* Siemens (Optional)
Shear system	SIHUA(import from Italy)	SIHUA(import from Italy)

Introduction of struct channel roll forming machine

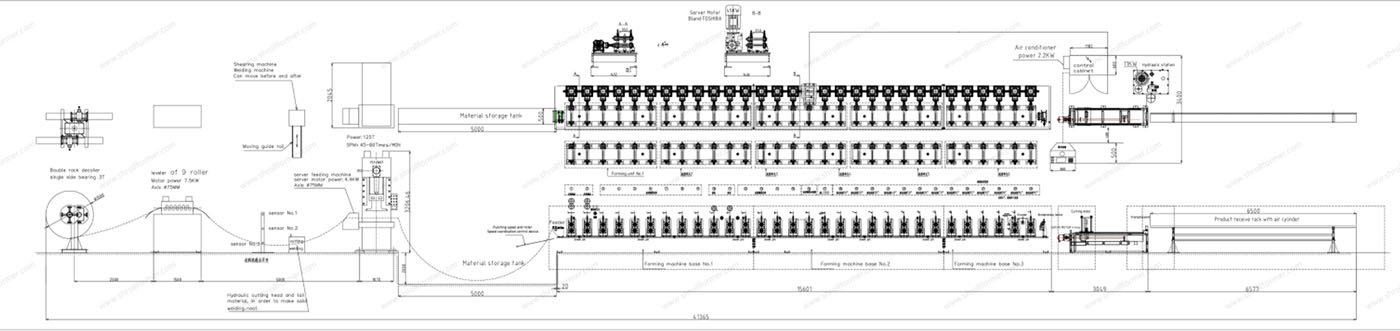

Production process: De-coiler →lever and feeder → press machine(contain punching die)→ roll forming profile →cutting table →packing table (hydraulic system given power) all parts were control by electrical control system

Video

Leveler

Leveler of struct channel roll forming machine.

Press machine of struct channel roll forming machine

Yangli capacity 125tons YANGLI JH21-125.

Struct channel roll forming machine with drive system

C 38*40 roll forming machine Product speed30-50m per min.

Solar pv bracket roll forming machine with drive system

Packing table of struct roll forming machine

Stacking table 6.5m.

Packing table of Solar pv bracket roll forming machine

Electric control system of struct channel roll forming machine

1. Encoder: OMRON(Japanese brand)
2. Frequency motor: 45KW(NIDEC)JAPAN
3. PLC: MITSUBISHI(Japanese brand)
4. Human interface: KINCO
5. Relay: OMRON(Japanese brand)
