Shanghai SIHUA Precision Machinery Co., Ltd. focus on researching and developing roll forming technology and innovation for automatic high-speed flying shear roll forming machine. Shanghai SIHUA has an excellent research team, we can achieve at least 5 sets new machinery and apply 10 technical patents each year. We can Build 3D production line and very part. We have DATAM Copra software to design and analyse roller flows. SIHUA Annual sales more than 120 million yuan. Sihua machines are shipped to world wild and received unanimous praise.
SIHUA factory has 3 buildings. The environment is clean and beautiful for develop many technical talents in design, processing and assembly department.
SIHUA quality management system conforms to the standard ISO9001. German processing technology for all spare parts, we has Japan CNC Lathe, Tai wan Brand CNC, Taiwan Long-men processing center. We have professional measuring machine: German brand three coordinate measuring instrument and Japan brand Altimeter to confirmed all spare parts in requirement precision.
90m per min stud and track drywall profile roll forming machine
90M per min Automatic Change Stud and Track Roll Forming Machine for produce UW CW_EU and CW_IT.
Working flow: Double head hydraulic decoiler- Automatic change roll forming machine- Double shear cutting system-Europe hydraulic station-Big control system control.

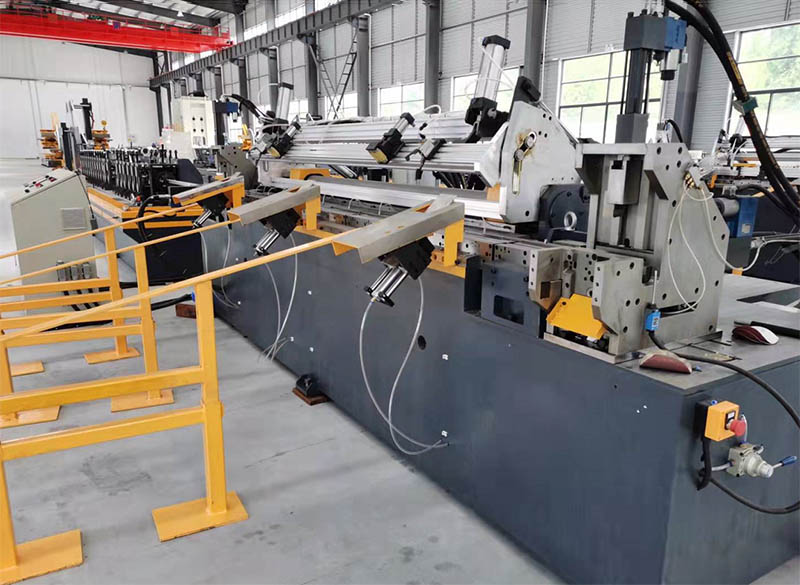

Shanghai quality SIHUA main ceiling t grid roll forming making machine
T-Bar production line can be monitored by PLC. If the T-bar production line has errors, the PLC will locate the errors. It is easy to maintenance for workers.
The speed of T-Bar Production is in 0-80M/min. Average speed is 36m per min. One minute can produce 10PCS length 3660mm (12FT) main-Tree.
Different specifications Roller forming units(6) can be replaced in 30 minutes, 24X32H specifications can be produced if add one set roller forming units(6).
Product drawing: 38h *24*3600mm / 38h*24*3000mm.
We design the machine do according to your confirmed drawing.
C type strut channel roll forming machine
C-type rail pressure column forming machine, also known as mounting bracket support forming machine, is developed on the basis of anti-seismic support forming machine. Its products are used for installation, support, support and connection of light structural loads in building construction.
Sihua Rebar Channel Steel Forming Machine is suitable for producing 41*41, 41*51, 41*52, 41*72 steel bar profiles by manually replacing different cassette rollers. One size profile uses one type of cassette roller, which can save the time of adjusting the roller and debugging time, and is convenient for ordinary operators to operate.
A structural channel forming machine is a specific type of machine used in the metal forming industry. It is designed to efficiently and accurately produce structural channels from sheet metal. The machine works by feeding a metal sheet into the machine where it is bent, cut and formed into the desired structural channel shape. These structural channels are commonly used in framing and support structures in the construction industry. Various settings can be used to control the machine to generate structural channels of different sizes and shapes.
Solar panel mounting bracket roll forming machine
A solar photovoltaic mounting roll forming machine is a roll forming machine specifically designed to produce mountings for mounting solar panels to roofs or other structures. These brackets are usually made of metal and are designed to provide a secure and stable base for the solar panel to be installed on. The machine works by feeding a coil of metal into a series of rollers that gradually shape and cut the metal into the desired bracket shape. The solar photovoltaic bracket roll forming machine can also produce brackets of different shapes and sizes according to the specific requirements of solar panel installation. By using a solar photovoltaic mount roll forming machine, manufacturers can produce mounts at high speed and with consistent quality, helping to reduce the overall cost of solar panel installation. It is an essential machine in the solar panel industry.
If you are looking for a reliable and efficient solution for the production of solar panel mounting brackets, look no further than industry experts. Contact us today to learn more about our range of premium PV mounts and services, and how we can help your business succeed in the renewable energy market.
Technical agreement of upright profile production line
Production speed
programshear cuttingoff speed is15-30Mper min Product thickness is2.5-mm-
Product length tolerance +-1mm/10000mm
Total power:108.3kw
Motor in lever:4.4kw
Motor in hydraulic station power is 18.5kw
Machine size
Total weight: 60ton 3*40HQ
Size（ L*W） ;41*5M
