Drywall Profile Roll Forming Machine with Automatic Big Package Machine – Technical Specifications

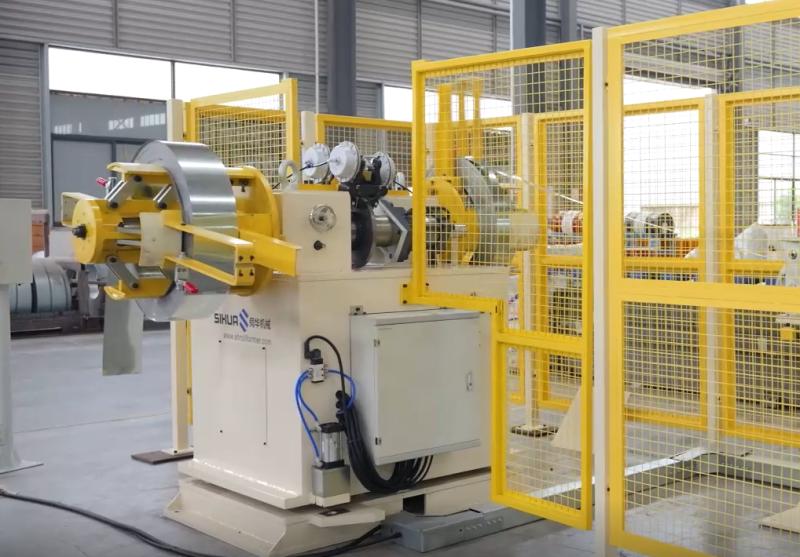

● Double Head Hydraulic Decoiler
● Capacity: 3 tons × 2 pieces
● Hydraulic expansion coil
● Motor rotary exchange for changel coiler operation

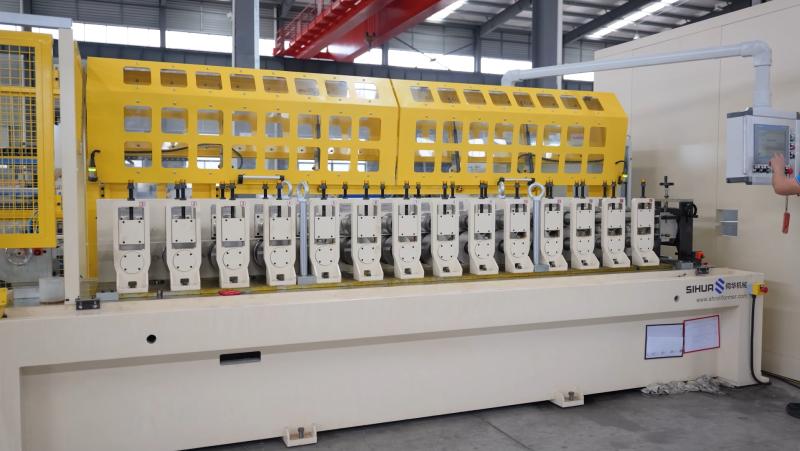

● 4 Sets of Combi Rollers for forming:
● CW Profile (C-Channel for Walls stud)
● UW Profile (U-Channel for walls track)
● CD Profile (Furring Channel)
● Wall Angle Profile (Corner Bead)

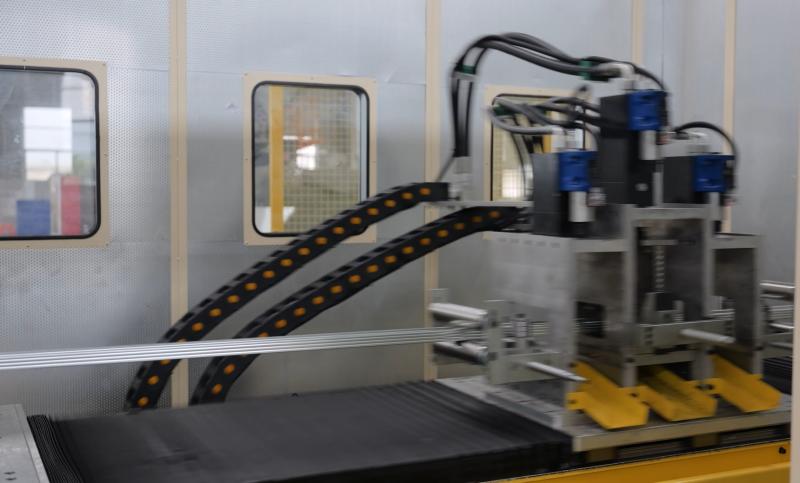

● Punching Speed: ≥ 80 m/min
● Cutting Speed: 120 m/min
Power: 22 kW
● Italian Controller System
● HMI and PLC: Siemens
● CE safety system

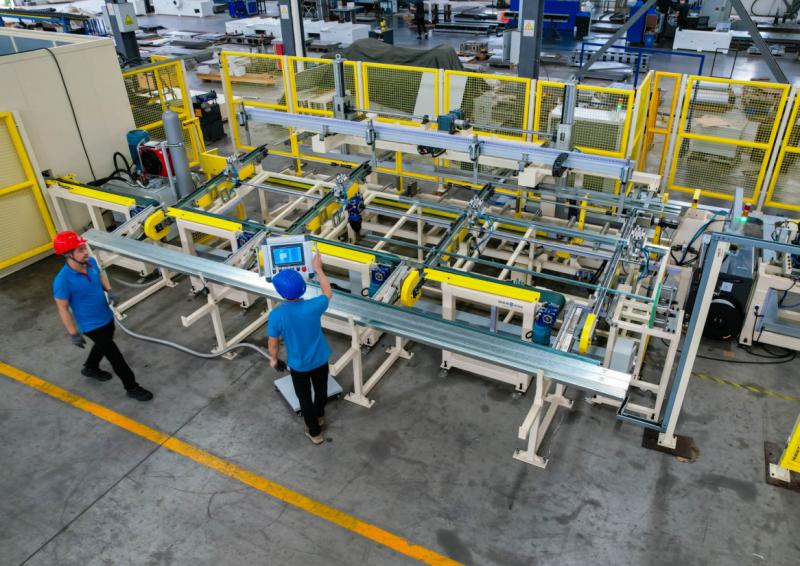

1.Turn Over System – For profile flipping before bundling
2.PP Strapping Machine – Polypropylene strapping for secure bundling

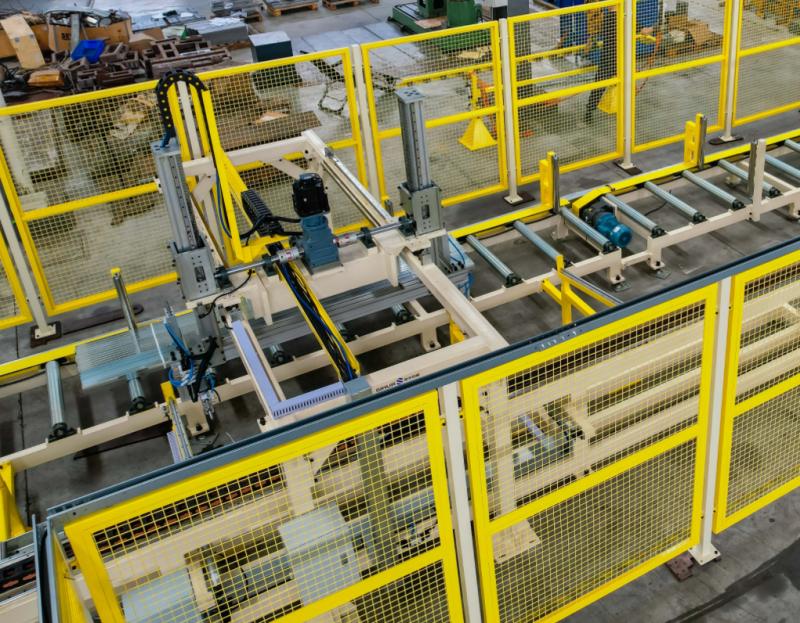

3.Stacker System – Automated stacking of finished profiles
4.Big PET Strapping Machine – Heavy-duty PET strapping for large bundles
5.Output Conveyor – Transport system for finished packages
✔ High-speed production with precision punching and cutting
✔ Automatic packaging for efficient handling
✔ Siemens PLC control for reliable operation
✔ Suitable for multiple drywall profiles (CW, UW, CD, Wall Angle)
This machine is ideal for drywall profile manufacturers looking for automated, high-speed production with integrated packaging.
Would you like additional details on motor power, material thickness range, or customization options
